Regra de dobra

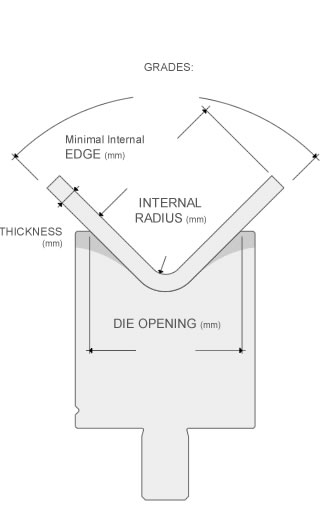

Using the data below, you will get the parameters of bending
* calculations are for free bending or air bending
Move the cursor to select a different die opening
|
|
|
|
|
|
|
| Die Opening (mm) | 4 | 5 | 6 | ||
|---|---|---|---|---|---|
| Min. int. edge (mm) | 3 | 3.5 | 4 | ||
| Internal radius (mm) | 0.5 | 0.7 | 0.8 | ||
| Bending force (Ton/m) | 4 | 3 | 2 | ||
|
|
|
|
|
|
Flattening (Ton/m)
Partial Flattening (Ton/m)
