Prevent Slug Pulling

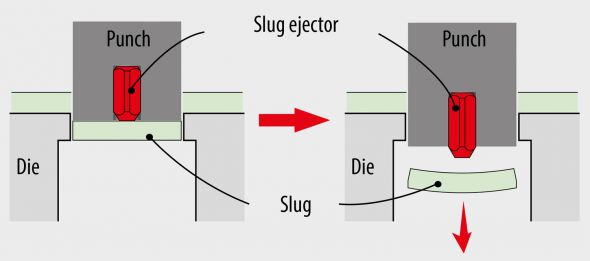

PUNCH
Slug ejector push down the slug.
It will be installed to over Ø4 for round and over 6 mm width shape tool as our standard.
Please contact us, when punch thick material sheet or hard material with small punch diameter.
DIE

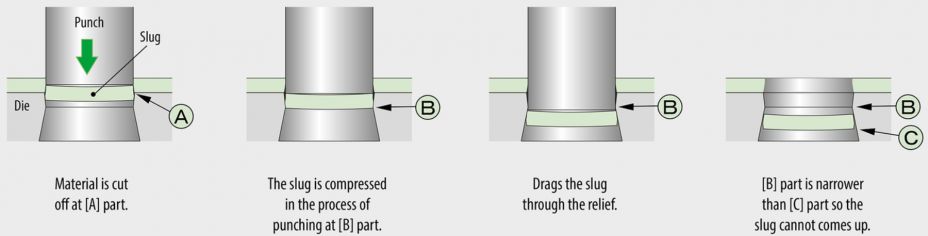

Slug Catcher Die
Standard shapes and special shapes have this function as standard. (Except: Blank type, less than 2 mm width die for blank will be parts, punch with heel, die clearance is less than 0.1 mm)

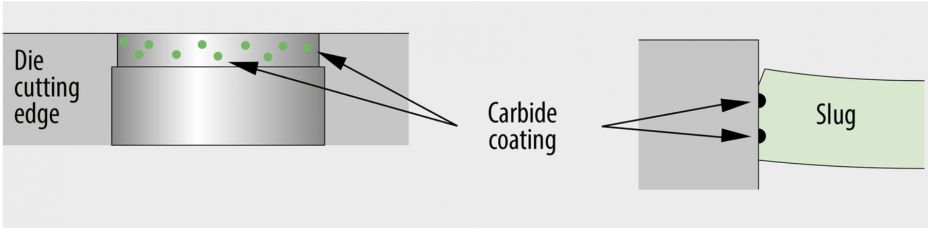

Depositron Process
Put electrical super hard spot onto inside of die hole Except clearance 0.1 mm Standard on die diameter Ø2~Ø4.5

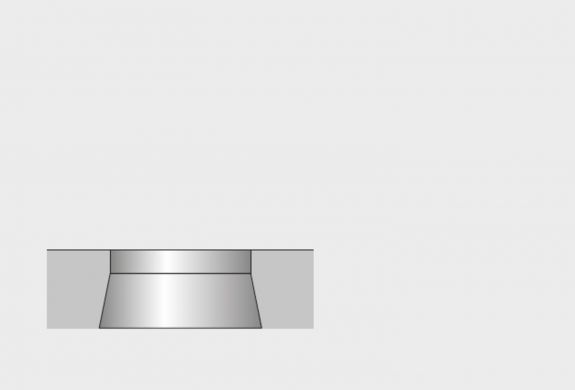

Straight with taper Die
Use this specification standard on Blank tool, less than 2 mm width die for blank will be parts, punch with heel die clearance is less than 0.1 mm
Cyclone Die (Compatible with Amada power vacuum die)
Cyclone die has small incline holes to provide cyclone airflow to make a strong vacuum area under the die. This vacuum helped to prevent slug pulling problems. This function is working only when punching machine has vacuum die use function as machine option.
